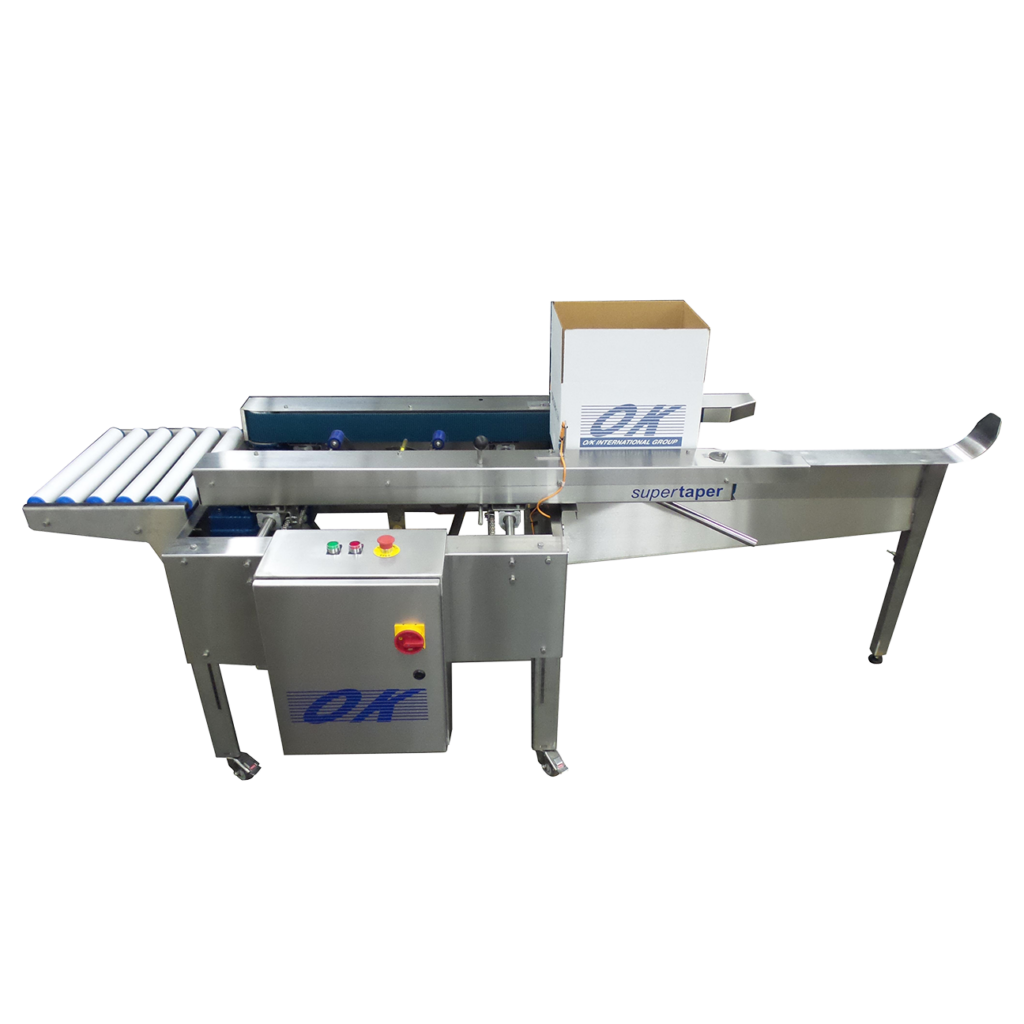

Supertaper ST1X
Semi-Automatic Case Sealer with Case Forming & Pack-Station
The machine provides an efficient and ergonomic solution for the forming, packing and sealing of RSC cases. The machine is also available without a top structure, making it suitable for semi-automatic case erecting and bottom taping.
Features |
Benefits |
 Stainless steel exterior finish. |
Clean & Durable. Maintains hygiene. |
| Heavy duty motors and belts. |
Suitable for demanding applications & cases up to 55 lbs. (25 kg). |
| Extended belts, 7 flap folder. |
Minimizes operators handling and fatigue. |
| Quick & easy size change. |
Increased flexibility and production efficiency. |
ST1M TECHNICAL SPECIFICATIONS
| Case range: | 5.00” x 5.00” x 4.00” (L x W x H) min. 20.00” x 20.00 x 20.00” (L x W x H) max. |
| Speed: | Typically up to 12 cases per min. |
| Case Weight: | Up to 55 lbs. (25 kg). |
| Tape Applicator: | OK-55 high quality taping head with open tape feed path, suitable for all standard 2“ (50mm) wide pressure sensitive tapes up to 14” (350ml) roll diameter. OK-75 3″ (75mm) optional. |
| Finish: | Stainless steel frame legs and top structure. |
| Conveyor Motors: | Two 0.25 HP (0.18 Kw) motors. |
| Side Belts: | 4.00″ (95mm wide belts). |
| Voltages: | 110V, 1Ph, 60Hz. Other voltages to requirement. 400V, 3Ph, 50Hz. Other voltages to requirement. |
| Protection Class: | Nema 12 (IP-54). |
| Infeed/discharge height: | 22.00” – 31.00” (550mm – 800mm). |
| Machine Dimensions: | 91.00” x 38.00” x 54.00” (2310mm x 965mm 1370mm) (L x W x H), at minimum working height, excluding discharge roller conveyor. |
Add-on Options
- Castors
- OK 75 3" (75mm) or 55 2" (50mm) taping heads
- Bottom taping head
- Conveyors
