Supertaper Case Sealers

We manufacture a range of high quality stainless steel case sealers that are suitable for demanding applications in a variety of food and non-food industries.

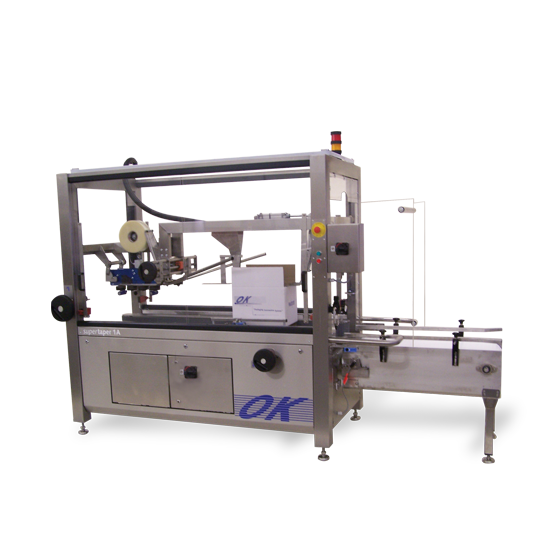

Supertaper ST1A
Supertaper ST1A

Supertaper ST1A

Automatic Case Sealer

These premium grade stainless steel automatic case top sealers fold the case top flaps of AFM and RSC cases and seal these with tape or hot-melt glue.

Videos Brochure
Manual

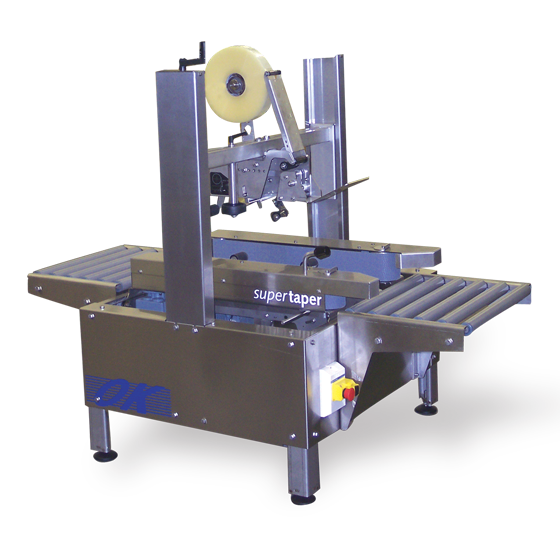

Supertaper ST1M
Supertaper ST1M

Supertaper ST1M

Semi-Automatic Case Sealer

The Supertaper ST1M Semi-Automatic Uniform Case Sealer is a solid and compact side belt driven case sealer, suitable to seal cases quickly efficiently and neatly.

Videos Brochure
Manual

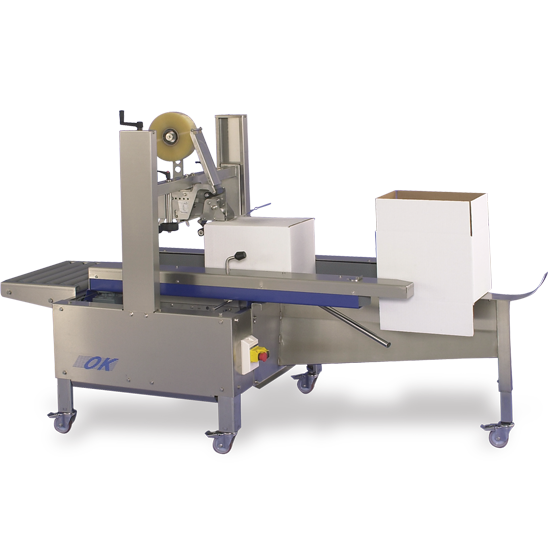

Supertaper ST1X
Supertaper ST1X

Supertaper ST1X

Semi-Automatic Case Sealer with Case Forming and Pack-Station

The machine provides an efficient and ergonomic solution for the forming, packing and sealing of RSC cases.  The machine is also available without a top structure, making it suitable for semi-automatic case erecting and bottom taping.

Videos Brochure
Manual

Options

Customize your machine

    • Castors
    • OK 75 3″ (75mm) or 55 2″ (50mm) taping heads
    • Bottom taping head.
    • Conveyors.
    • Touch screen operator interface.
Supertaper ST1A
Supertaper ST1A

Supertaper ST1A

Automatic Case Sealer

These premium grade, stainless steel automatic case top sealers fold the case top flaps of AFM and RSC cases and seal these with tape or hot-melt glue.

Videos Brochure Manual





Features

Benefits

1-2-3 size adjustment. Self centering and linked adjustments provide easy size changes in 3 steps for maximum flexibility.
Fast tape roll changes.Completely open tape feed path and light weight OK-55 taping heads provide operator friendly loading of the rolls of tape in seconds.
Designed for automatic lines. Standard features include PLC controls, in-feed gate or conveyor. Out-feed control photo eye, low tape and no tape signals, stack-light and full interlocked guarding.
Floating top taping head and folding arms.. Compensates for variations in case height and under filled or slightly over filled cases.
Heavy duty motors and resilient side belts. Suitable for the most demanding applications and bulging cases.
Stainless steel exterior finish. Clean and durable, preferred in food industries and harsh environments.

TECHNICAL SPECIFICATIONS

Case Range
(Closed case dimensions)

8.00” x 5.00” x 3.00” (L x W x H) min.
200mm x 115mm x 85mm (L x W x H) min.

24.00” x 20.00” x 24.00” (L x W x H) max.
600mm x 500mm x 600mm (L x W x H) max.

Belt Speed:78 feet (20m) per minute.
Tape applicators:OK-55 high quality, light weight taping heads with open tape feed path, suitable for all standard 2” (50mm) wide pressure sensitive tapes up to 14” (350mm) roll diameter.  OK-75 3″ (75mm) optional.
Electric:480V, 3 Phase, 60Hz.  Other voltages to requirement.
400V, 3 Phase, 50Hz.  Other voltages to requirement.
Pneumatic:80 – 100 psi (6 – 8 bar), 3/8″ supply.  Clean, dry and unlubricated air.
Finish:Brushed stainless steel frame, covers, contact parts and electrical enclosure, interior components anodized, plated and powder coated.
Line height:Adjustable from 25.00” – 35.00” (650mm -900mm).
Machine handling:Right to left or left to right.

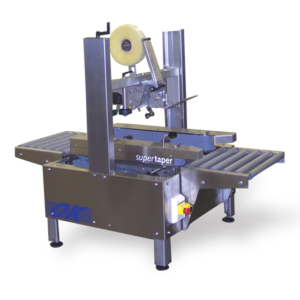

Supertaper ST1M
Supertaper ST1M

Supertaper ST1M

Semi-Automatic Case Sealer

The Supertaper ST1M Semi-Automatic Uniform Case Sealer is a solid and compact side belt driven case sealer that is suitable to seal cases quickly, efficiently and neatly.

Videos Brochure Manual





Features

Benefits

Stainless steel exterior finish. Clean & Durable. Preferred in food and other industries.
Heavy duty motors & belts.Suitable for demanding applications and cases up to 90 lbs. (40 kg).
4″ (95mm) wide resilient side belts. Handles light, heavy or bulging cases..
Quick & Easy size change.. Increased flexibility and production efficiency.
Open tape feed path. Quick and operator friendly roll changes.
Case top compression rollers. Consistent top seal and enhanced cosmetics.

TECHNICAL SPECIFICATIONS

Case range:

4.75” x 4.75” x 3.25” (L x W x H) min.
120mm x 120mm x 85mm (L x W x H) min.
At 1.50” (40mm) Flap length settings.

4.75” x 4.75” x 4.0” (L x W x H) min.
120mm x 120mm x 100mm (L x W x H) min.
At 2.25″ (60mm) Flap length settings.

Unlimited x 20.0” x 20.0” (L x W x H) max.
Unlimited x 500mm x 500mm (L x W x H) max.

Case weight:Up to 90 lbs. (40 kg).
Belt speed:65 ft. (20m) per minute.
Finish:Stainless steel frame, legs and top structure.
Taping heads:OK-55 high-quality taping heads with open tape feed path, suitable for 2.00” or 50mm wide tape (max.) and 14.00” or 350mm diameter rolls
Power requirements:110V, 1Ph, 60Hz.  Other voltages to requirement.
400V, 3Ph, 50Hz.  Other voltages to requirement.
Conveyor motors:Two 0.25 HP (0.18 Kw) motors.
Side belts:4.00” (95mm) wide belts.
Protection class:Nema 12 (IP-54).
Infeed/discharge height:22.00” – 31.00” (550mm – 800mm).
Machine dimensions:38.00” x 38.00” x 54.00” (965mm x 965mm 1370mm) (LxWxH), excluding roller conveyors.

Supertaper ST1X
Supertaper ST1X

Supertaper ST1X

Semi-Automatic Case Sealer with Case Forming & Pack-Station

The machine provides an efficient and ergonomic solution for the forming, packing and sealing of RSC cases.  The machine is also available without a top structure, making it suitable for semi-automatic case erecting and bottom taping.

Videos Brochure Manual

Features

Benefits

Stainless steel exterior finish. Clean & Durable. Maintains hygiene.
Heavy duty motors and belts. Suitable for demanding applications & cases up to 55 lbs. (25 kg).
Extended belts, 7 flap folder. Minimizes operators handling and fatigue.
Quick & easy size change. Increased flexibility and production efficiency.

TECHNICAL SPECIFICATIONS

Case range:

5.00” x 5.00” x 4.00” (L x W x H) min.
125mm x 125mm x 125mm (L x W x H) min.

20.00” x 20.00 x 20.00” (L x W x H) max.
500mm x 500mm x 500mm (L x W x H) max.

Speed:Typically up to 12 cases per min.
Case Weight:Up to 55 lbs. (25 kg).
Tape Applicator:OK-55 high quality taping head with open tape feed path, suitable for all standard 2“ (50mm) wide pressure sensitive tapes up to 14” (350ml) roll diameter.  OK-75 3″ (75mm) optional.
Finish:Stainless steel frame legs and top structure.
Conveyor Motors:Two 0.25 HP (0.18 Kw) motors.
Side Belts:4.00″ (95mm wide belts).
Voltages:110V, 1Ph, 60Hz.  Other voltages to requirement.
400V, 3Ph, 50Hz.  Other voltages to requirement.
Protection Class:Nema 12 (IP-54).
Infeed/discharge height:22.00” – 31.00” (550mm – 800mm).
Machine Dimensions:91.00” x 38.00” x 54.00” (2310mm x 965mm 1370mm) (L x W x H), at minimum working height, excluding discharge roller conveyor.
